ORACLE virtual 머신을 구동시켜 sap trial server로 abap 프로그램 공부 가능합니다.
링크 https://wikidocs.net/229943 클릭
상세한 내용은 교재에 나와있습니다. 교재를보시고 그대로 따라하시면 됩니다.
se38 티코드를 입력하고 zedu19_0020 명으로 프로그램을 생성한후
다음 소스코드를 복사해서 붙여넣기 하면 됩니다.
*주의 -SAP 버전마다 다르니 SELECT 소스코드는 각버전에 맞게 수정바랍니다.
CopySELECT * FROM SFLIGHT WHERE CARRID IN @S_CARRID
* INTO TABLE @DATA(LT_ITAB).
INTO CORRESPONDING FIELDS OF TABLE @GT_ITAB[].
"위에 SELECT 조회가 안되면 아래와 같이 소스코드 변경바랍니다.
"SAP 버전 또는 사용하는 DB마다 다르다보니 ORACLE DB, MYSQL DB 따라
"차이가 있습니다.
*SELECT * FROM SFLIGHT
* INTO CORRESPONDING FIELDS OF TABLE GT_ITAB
* WHERE CARRID IN S_CARRID .*&---------------------------------------------------------------------*

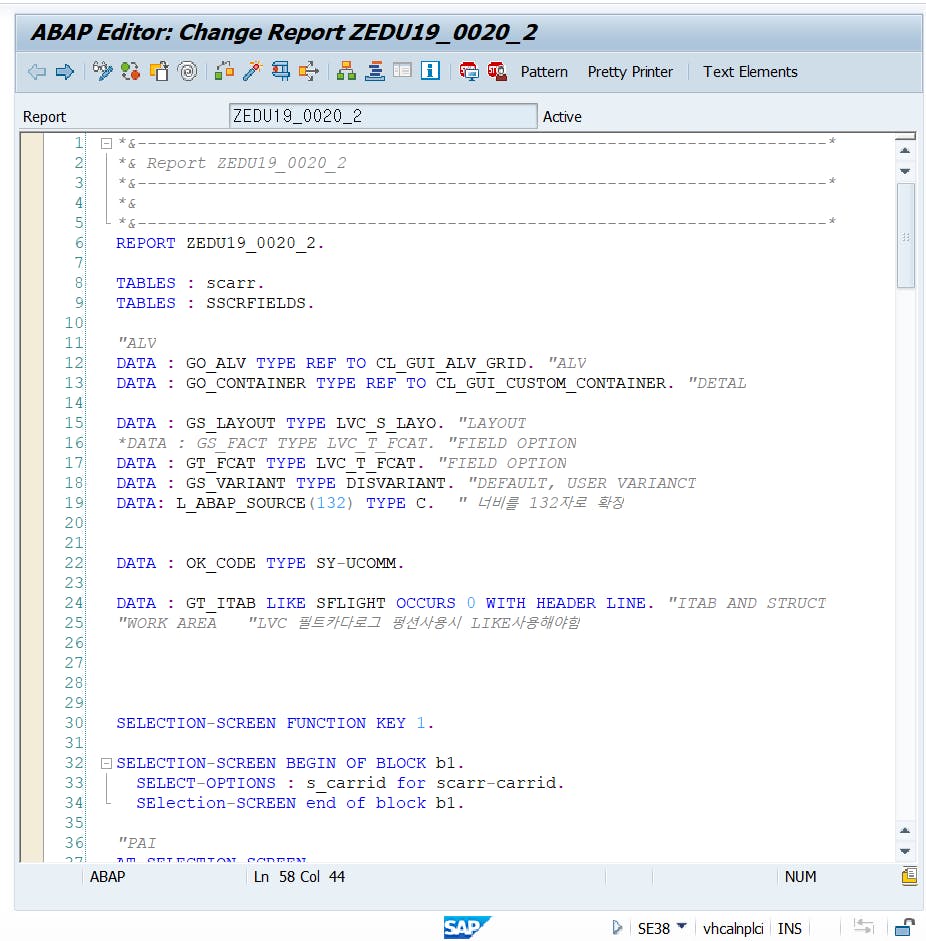

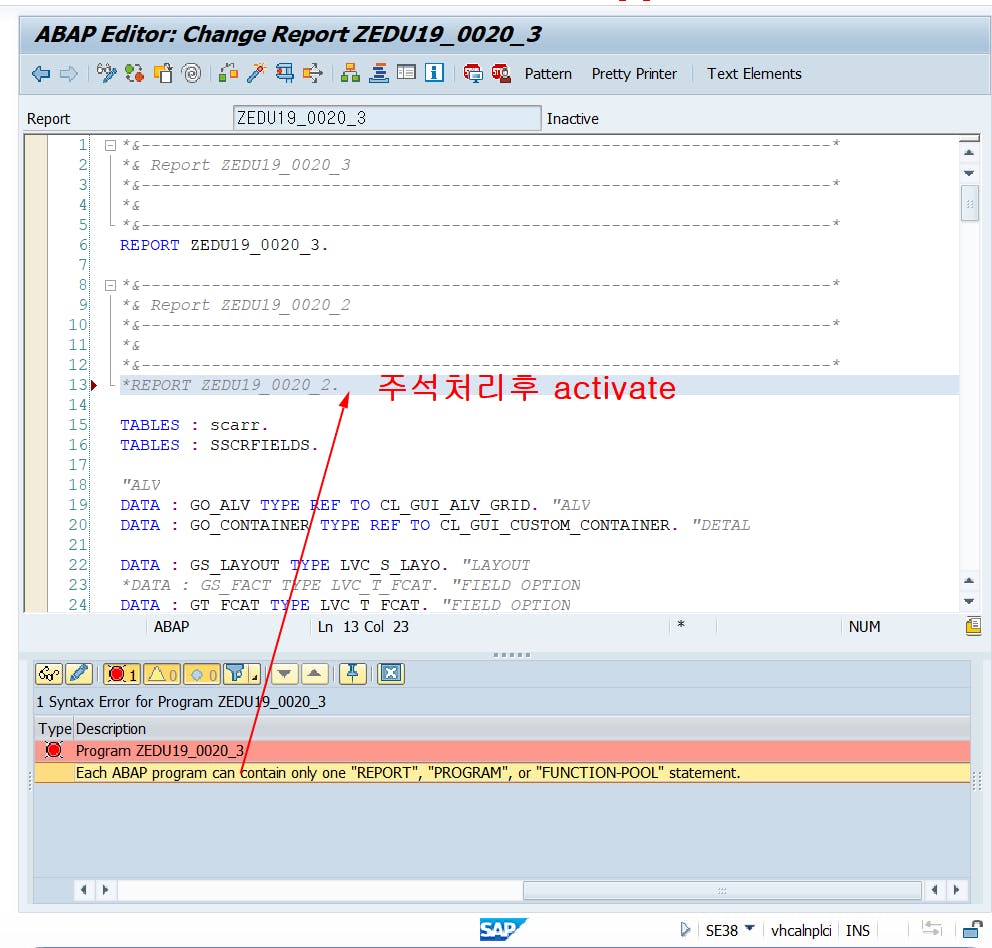

*& Report ZEDU19_0020_2
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
TABLES : scarr.
TABLES : SSCRFIELDS.
"ALV
DATA : GO_ALV TYPE REF TO CL_GUI_ALV_GRID. "ALV
DATA : GO_CONTAINER TYPE REF TO CL_GUI_CUSTOM_CONTAINER. "DETAL
DATA : GS_LAYOUT TYPE LVC_S_LAYO. "LAYOUT
*DATA : GS_FACT TYPE LVC_T_FCAT. "FIELD OPTION
DATA : GT_FCAT TYPE LVC_T_FCAT. "FIELD OPTION
DATA : GS_VARIANT TYPE DISVARIANT. "DEFAULT, USER VARIANCT
DATA: L_ABAP_SOURCE(132) TYPE C. " 너비를 132자로 확장

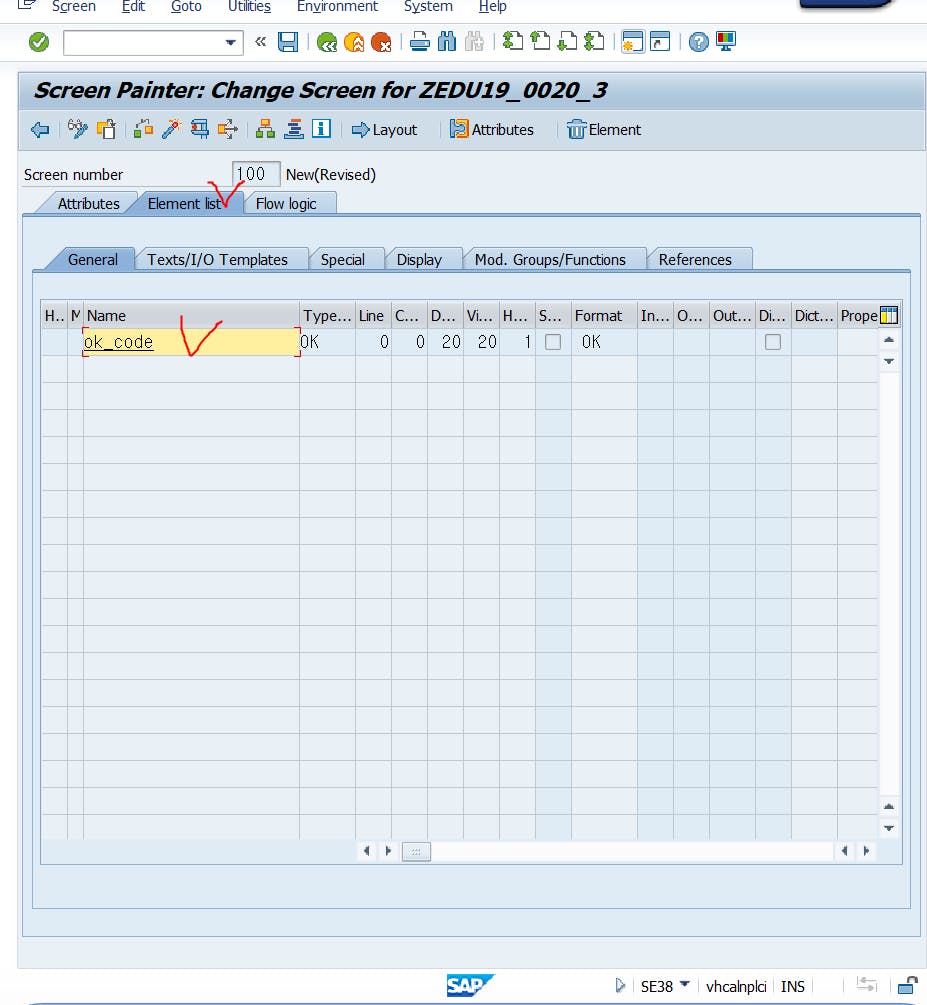

DATA : OK_CODE TYPE SY-UCOMM.
DATA : GT_ITAB LIKE SFLIGHT OCCURS 0 WITH HEADER LINE. "ITAB AND STRUCT
"WORK AREA "LVC 필트카다로그 펑션사용시 LIKE사용해야함
SELECTION-SCREEN FUNCTION KEY 1.
SELECTION-SCREEN BEGIN OF BLOCK b1.
SELECT-OPTIONS : s_carrid for scarr-carrid.
SElection-SCREEN end of block b1.
"PAI
AT SELECTION-SCREEN.
IF SSCRFIELDS-UCOMM EQ 'FC01'.
MESSAGE I001(ZABAP) WITH 'CLICK'.
ENDIF.
"PBO
AT SELECTION-SCREEN OUTPUT.
LOOP AT SCREEN.
IF SCREEN-NAME EQ 'S_CARRID-LOW'.
SCREEN-INPUT = 1. "0 INACTIVE 1 ACTIVE
MODIFY SCREEN.
ENDIF.
ENDLOOP.
INITIALIZATION.
s_carrid-low = 'aa'.
append s_carrid.
sscrfields-functxt_01 = icon_xls && 'EXCE'.
START-OF-SELECTION.
"SQL
SELECT * FROM SFLIGHT WHERE CARRID IN @S_CARRID
* INTO TABLE @DATA(LT_ITAB).
INTO CORRESPONDING FIELDS OF TABLE @GT_ITAB[].
end-of-SELECTION.
IF GT_ITAB[] IS INITIAL.
MESSAGE S001(ZABAP) WITH 'NODATA'.
ELSE.
* CL_DEMO_OUTPUT=>DISPLAY( LT_ITAB[] ).

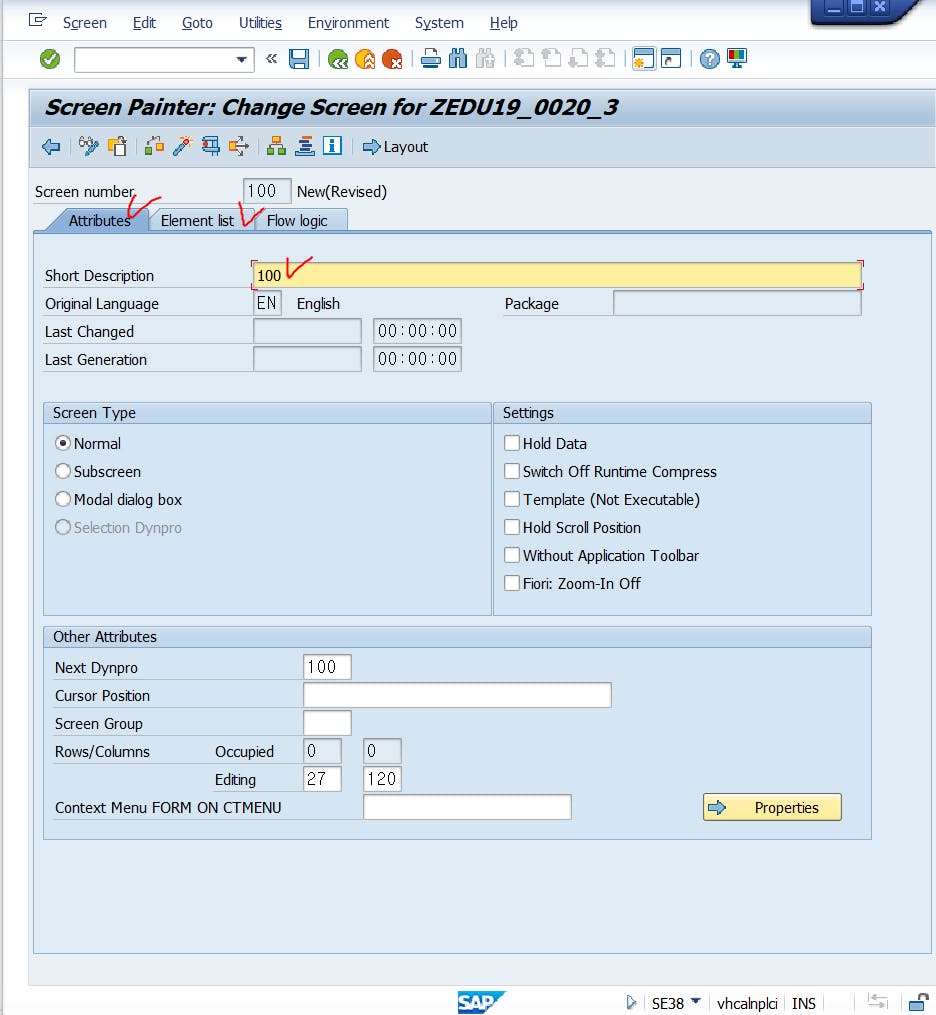

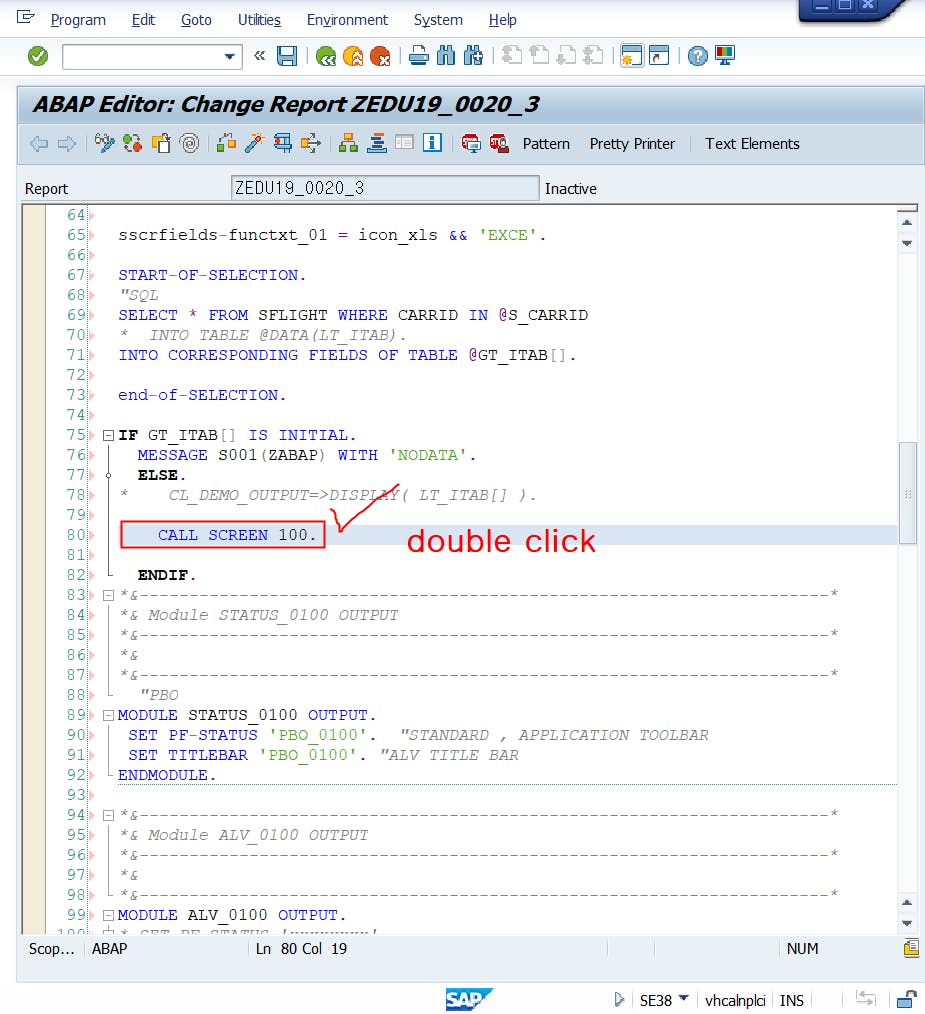

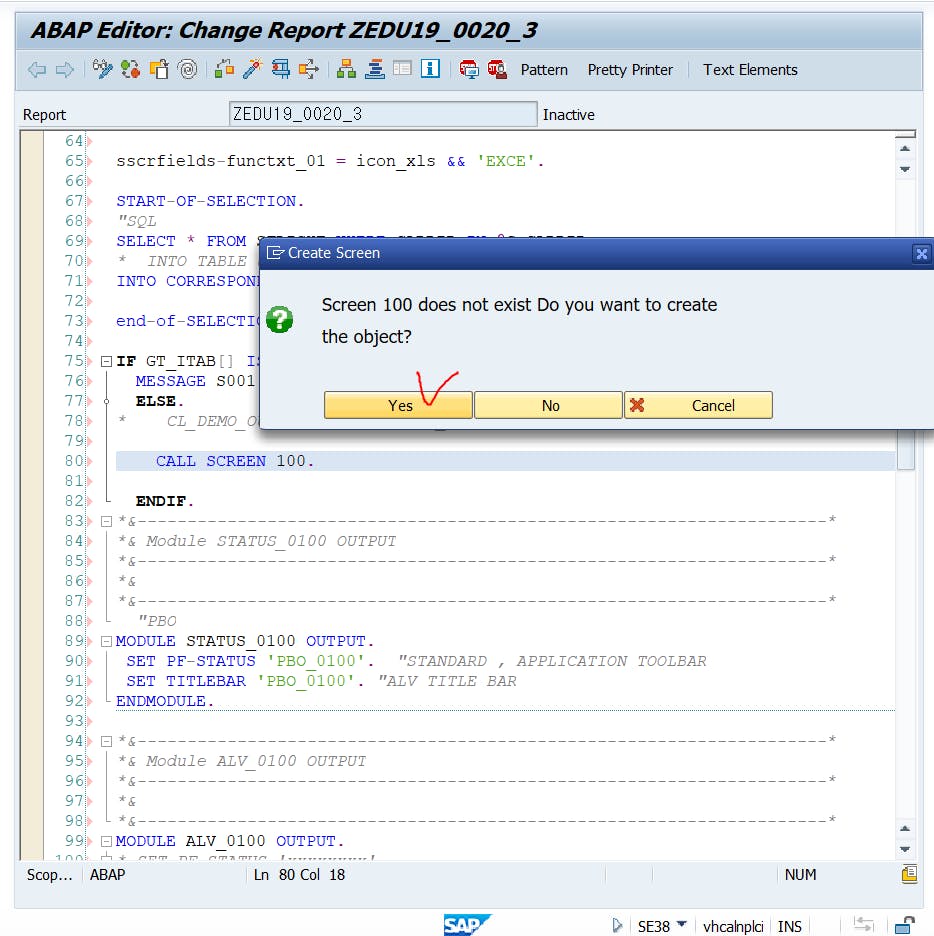

CALL SCREEN 100.
ENDIF.
*&---------------------------------------------------------------------*

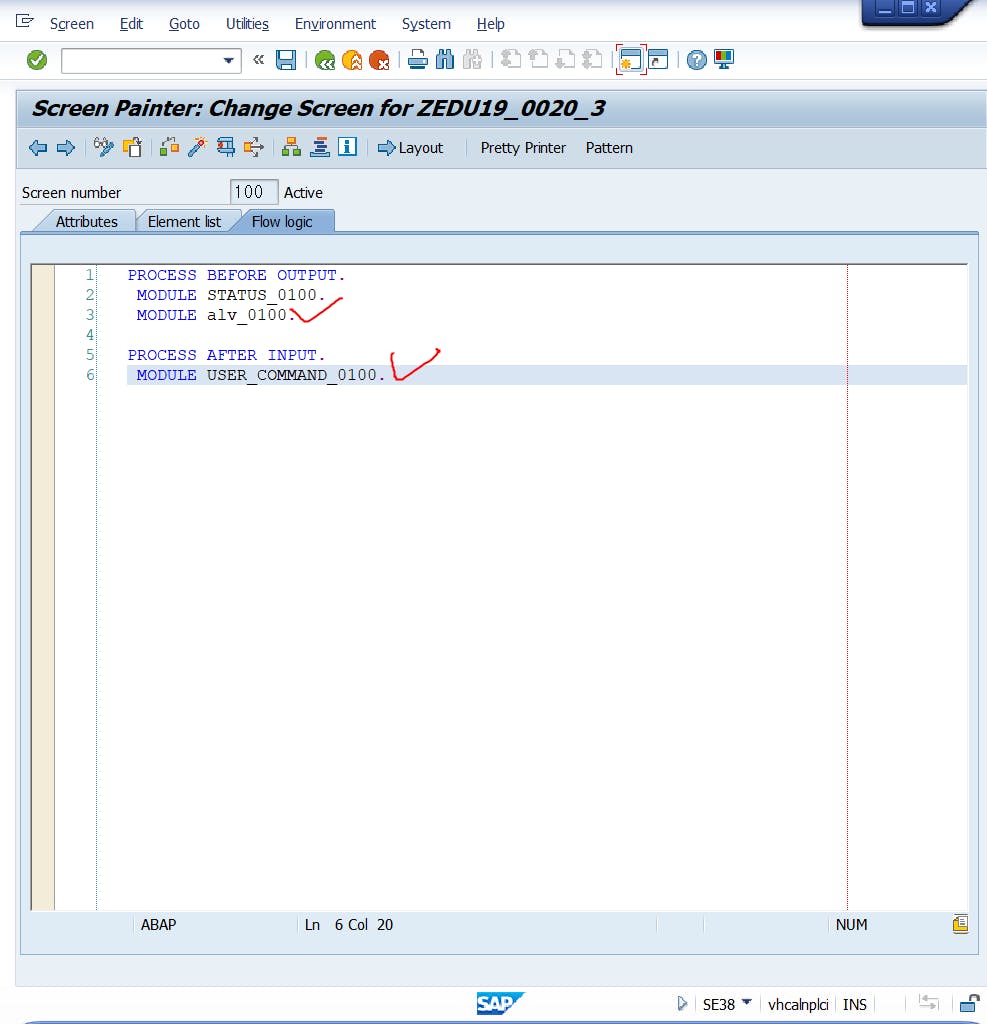

*& Module STATUS_0100 OUTPUT
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
"PBO
MODULE STATUS_0100 OUTPUT.

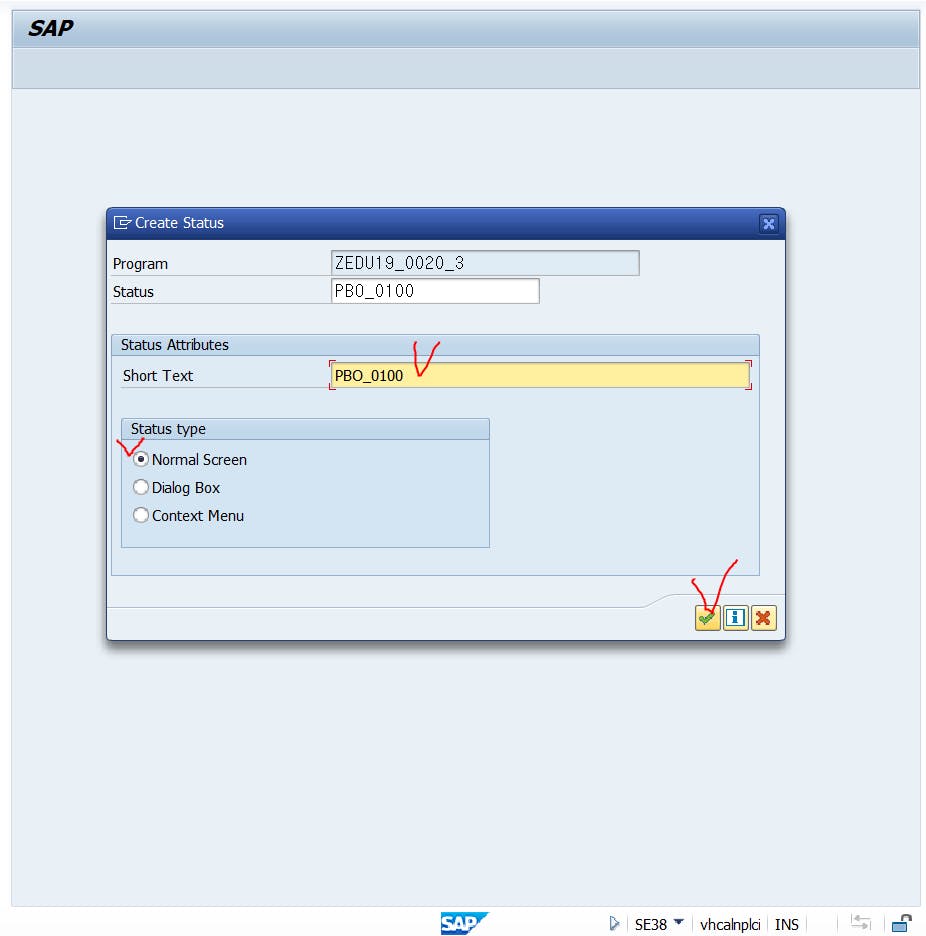

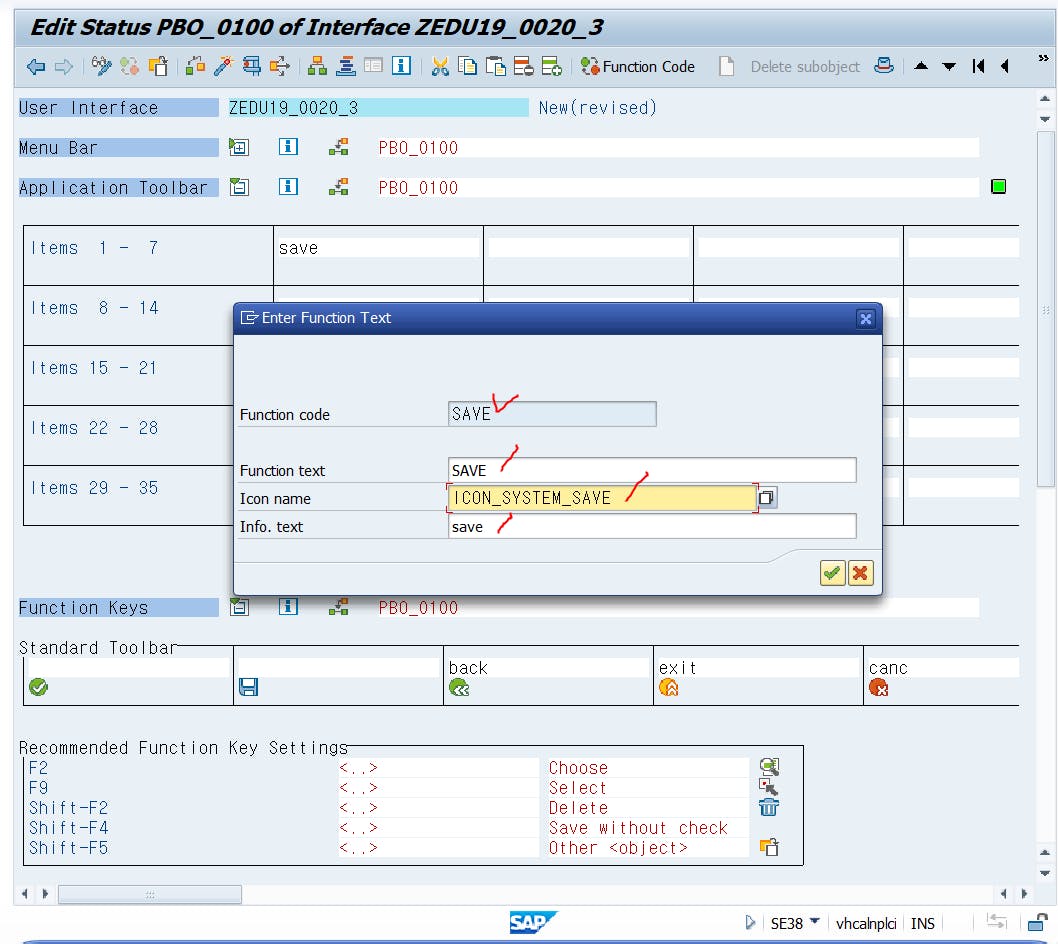

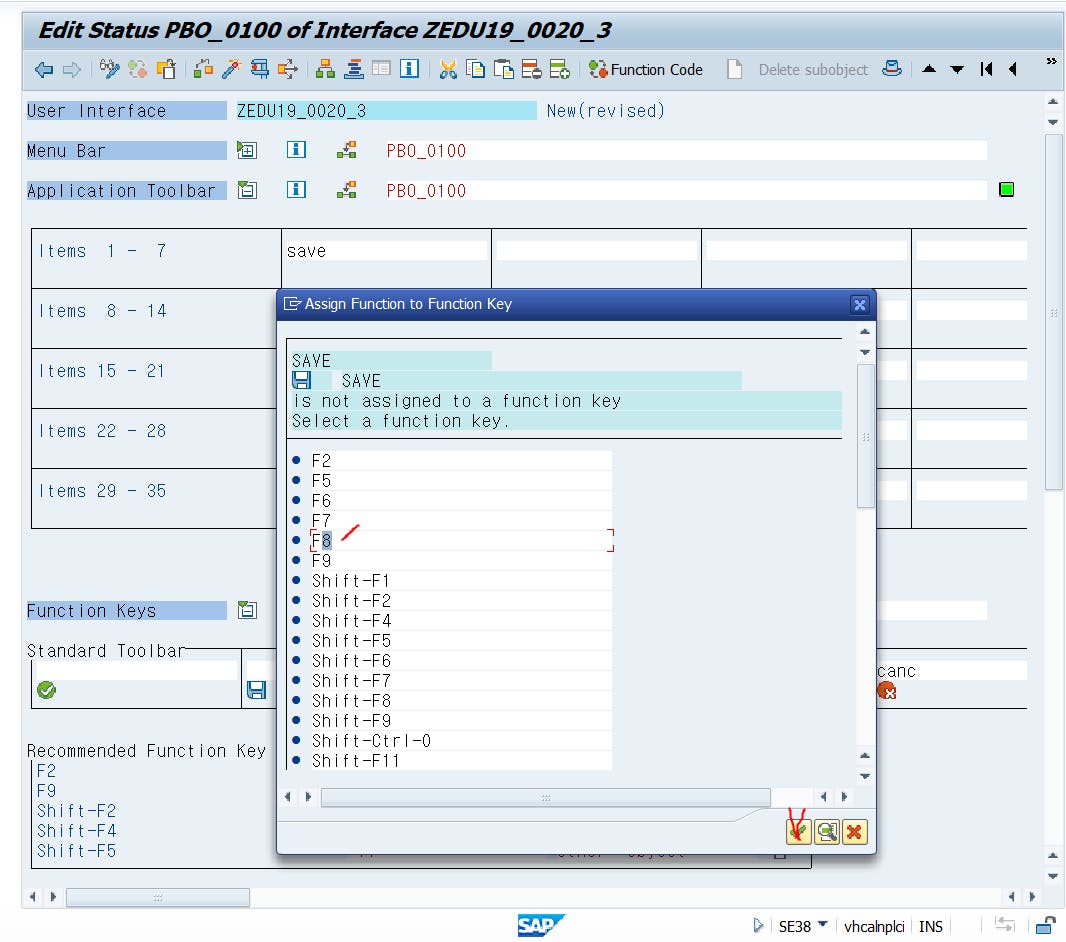

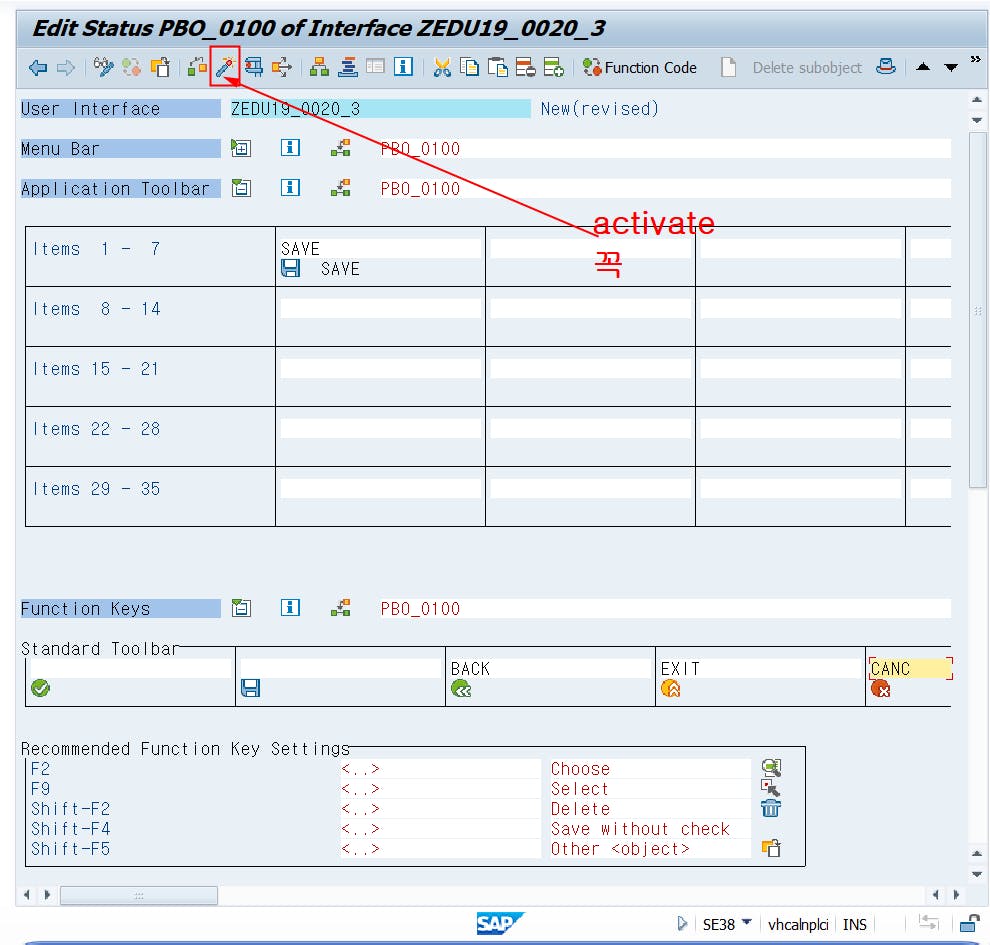

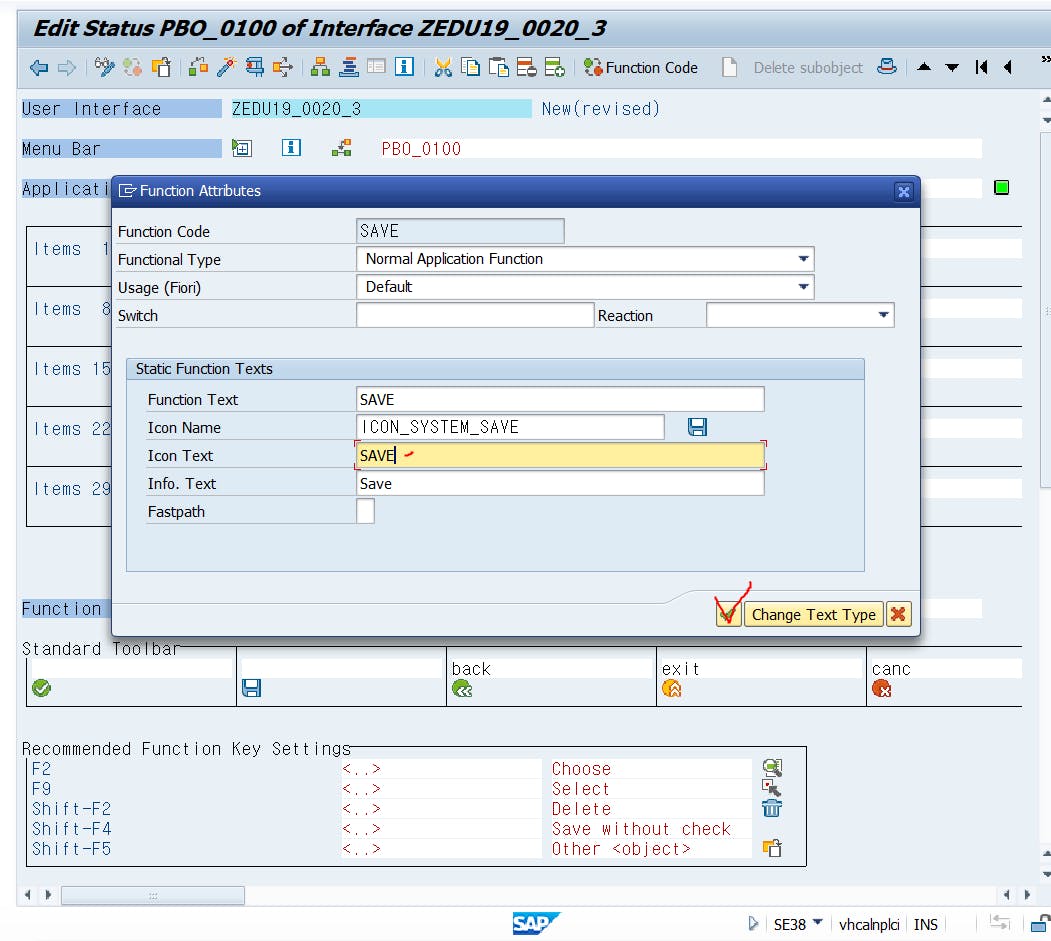

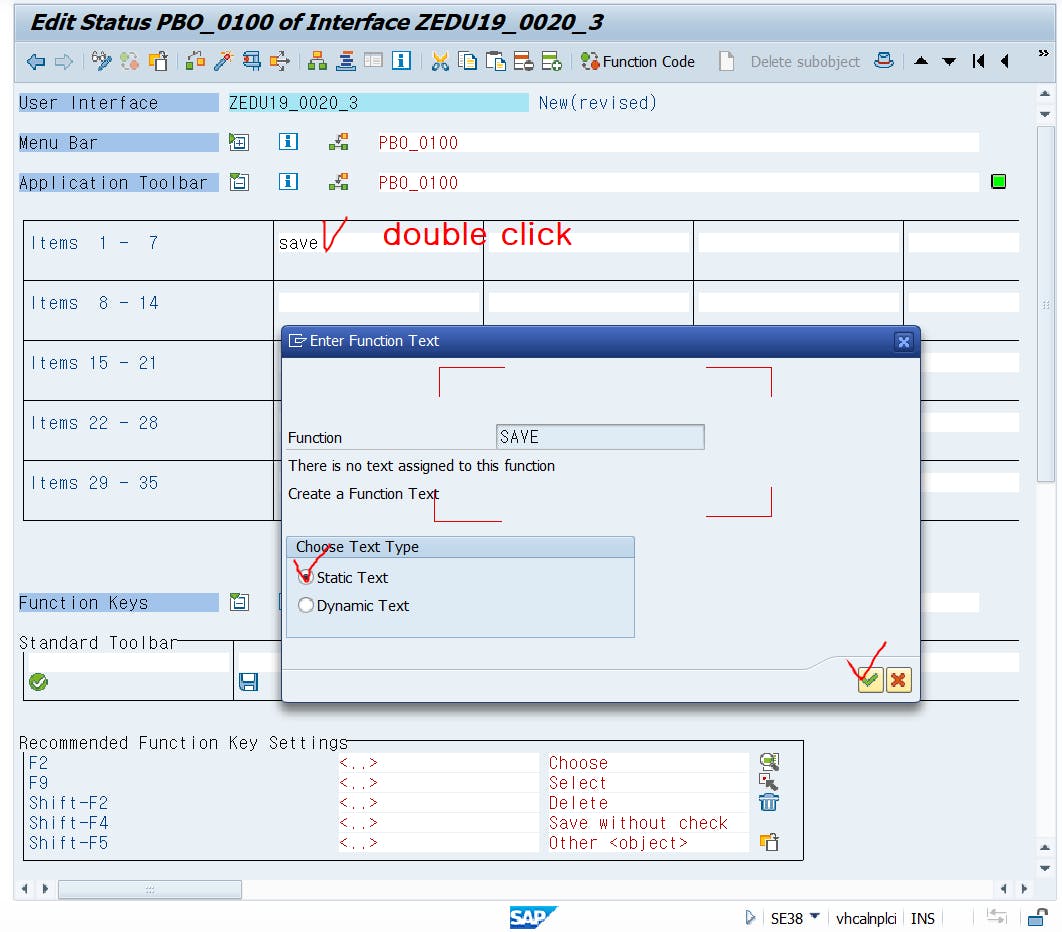

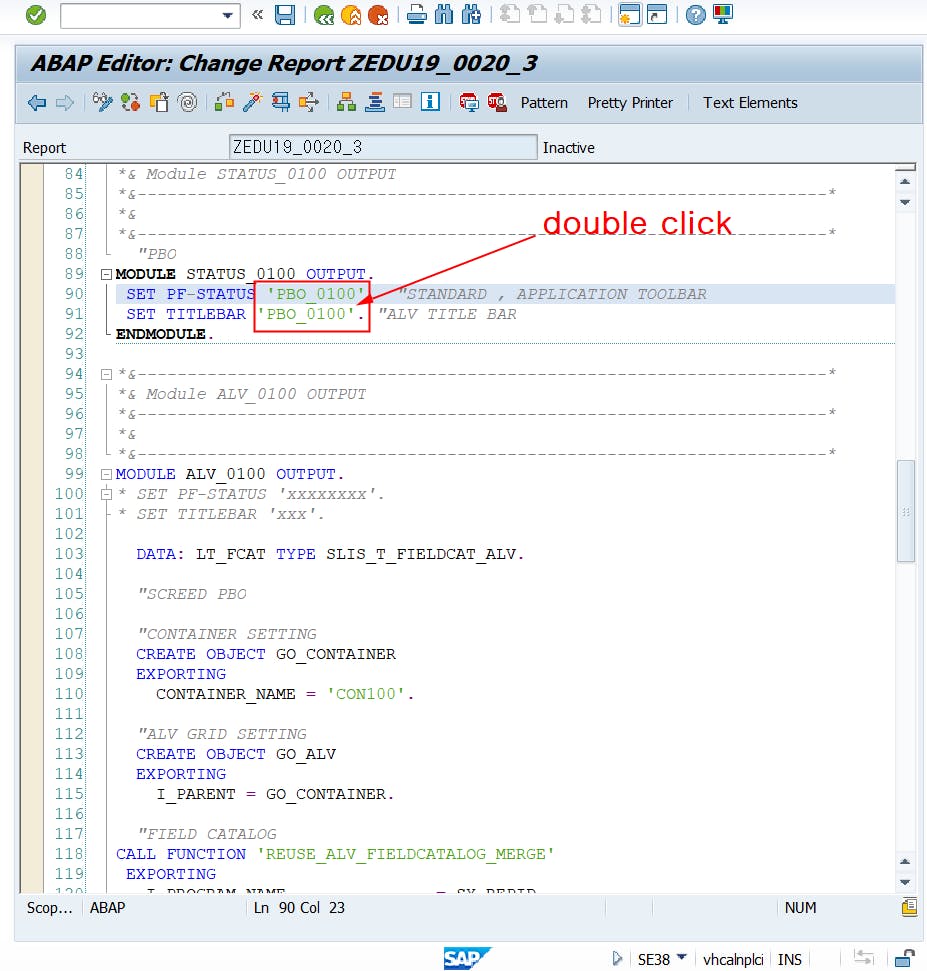

SET PF-STATUS 'PBO_0100'. "STANDARD , APPLICATION TOOLBAR
SET TITLEBAR 'PBO_0100'. "ALV TITLE BAR
ENDMODULE.
*&---------------------------------------------------------------------*
*& Module ALV_0100 OUTPUT
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*

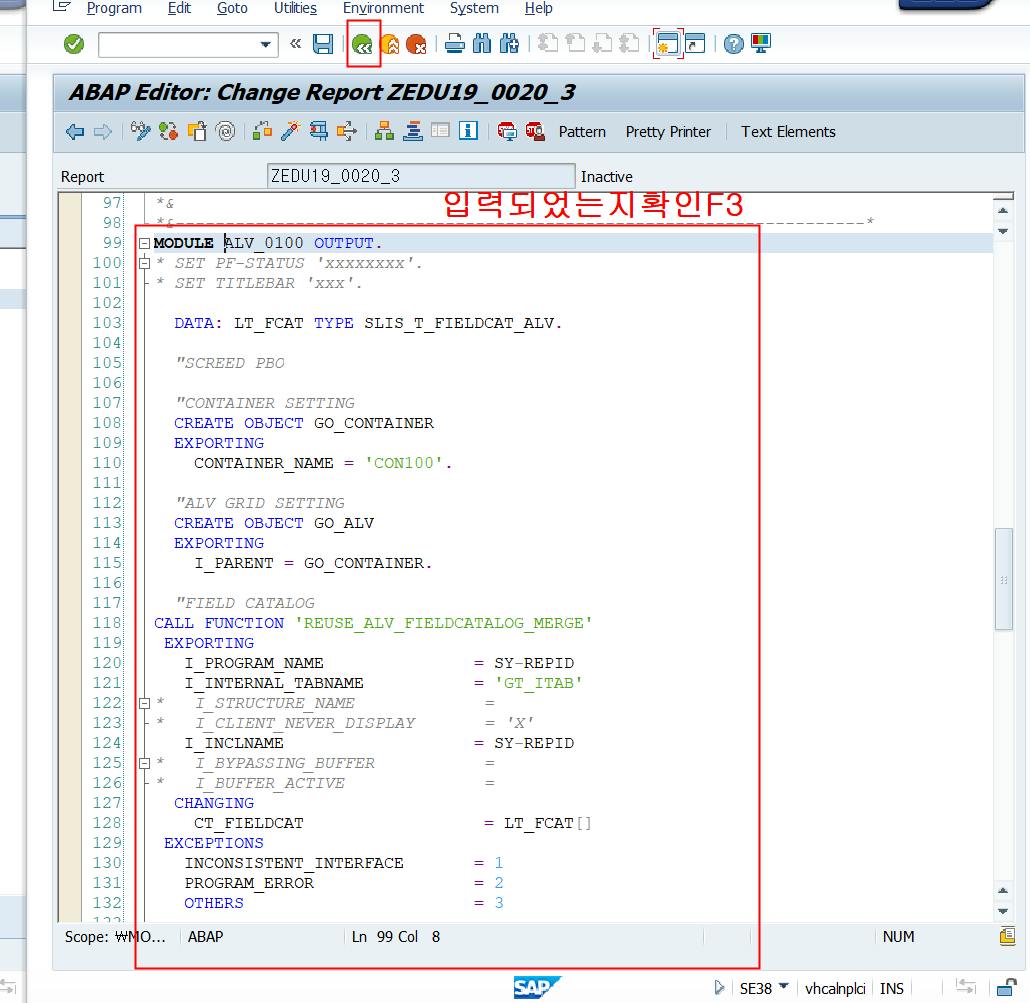

MODULE ALV_0100 OUTPUT.
* SET PF-STATUS 'xxxxxxxx'.
* SET TITLEBAR 'xxx'.
DATA: LT_FCAT TYPE SLIS_T_FIELDCAT_ALV.
"SCREED PBO
"CONTAINER SETTING

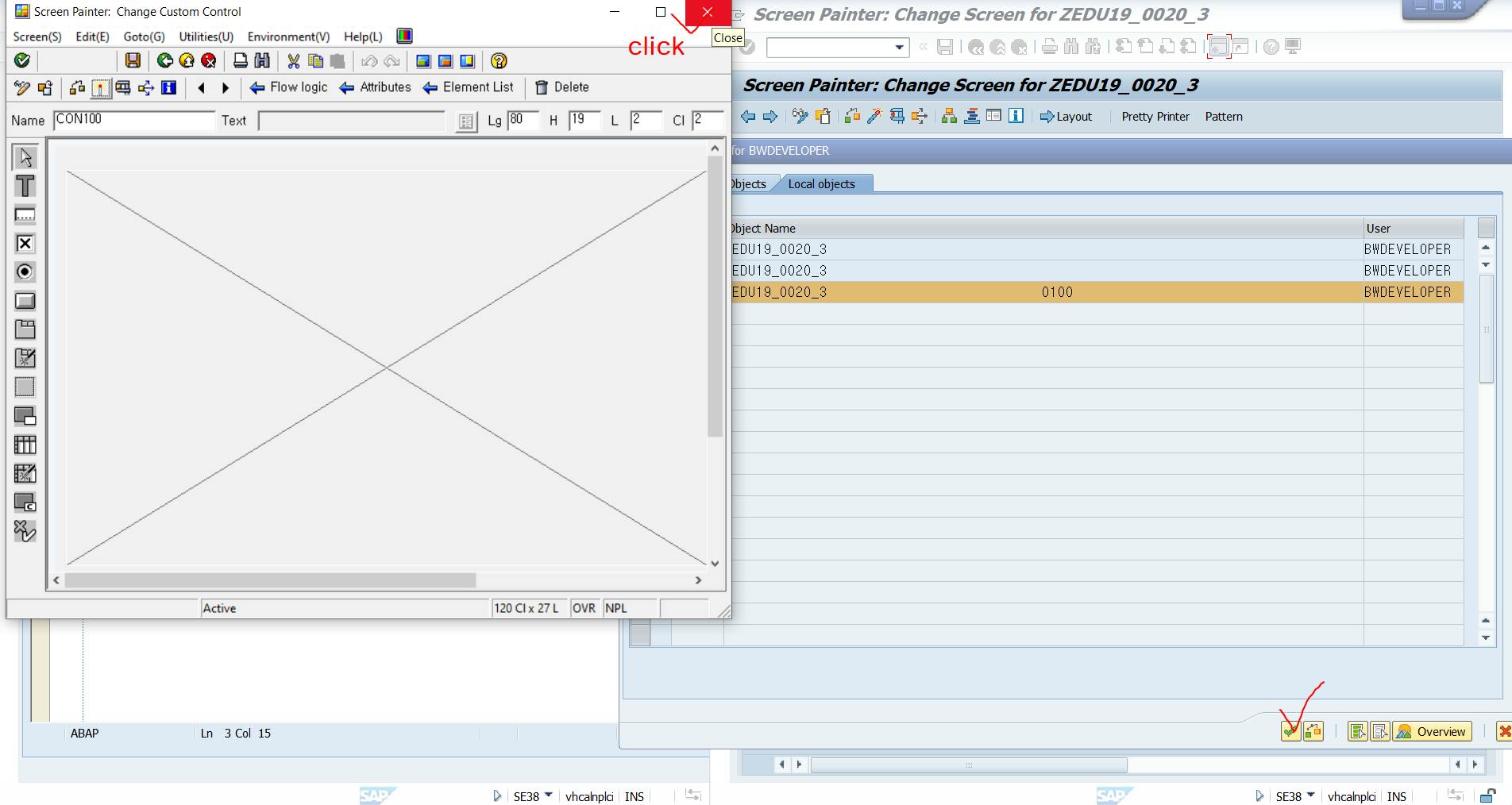

CREATE OBJECT GO_CONTAINER
EXPORTING
CONTAINER_NAME = 'CON100'.
"ALV GRID SETTING
CREATE OBJECT GO_ALV
EXPORTING
I_PARENT = GO_CONTAINER.
"FIELD CATALOG
CALL FUNCTION 'REUSE_ALV_FIELDCATALOG_MERGE'
EXPORTING
I_PROGRAM_NAME = SY-REPID
I_INTERNAL_TABNAME = 'GT_ITAB'
* I_STRUCTURE_NAME =
* I_CLIENT_NEVER_DISPLAY = 'X'
I_INCLNAME = SY-REPID
* I_BYPASSING_BUFFER =
* I_BUFFER_ACTIVE =
CHANGING
CT_FIELDCAT = LT_FCAT[]
EXCEPTIONS
INCONSISTENT_INTERFACE = 1
PROGRAM_ERROR = 2
OTHERS = 3
.
IF SY-SUBRC <> 0.
* Implement suitable error handling here
ENDIF.
"FUNCTION ALV - FIELD CATA -> CLASS ALV - FIELD CATA 변환
CALL FUNCTION 'LVC_TRANSFER_FROM_SLIS'
EXPORTING
IT_FIELDCAT_ALV = LT_FCAT
* IT_SORT_ALV =
* IT_FILTER_ALV =
* IS_LAYOUT_ALV =
IMPORTING
ET_FIELDCAT_LVC = GT_FCAT
* ET_SORT_LVC =
* ET_FILTER_LVC =
* ES_LAYOUT_LVC =
TABLES
IT_DATA = GT_ITAB
EXCEPTIONS
IT_DATA_MISSING = 1
OTHERS = 2
.
"ALV LAYOUT
GS_LAYOUT-SEL_MODE = 'A'.
"ALV PRINT
CALL METHOD GO_ALV->SET_TABLE_FOR_FIRST_DISPLAY
EXPORTING "FIEDL CAT 사용시 주석처리
* I_BUFFER_ACTIVE =
* I_BYPASSING_BUFFER =
* I_CONSISTENCY_CHECK =
* I_STRUCTURE_NAME = 'sflight' "FIEDL CAT 사용시 주석처리
IS_VARIANT = GS_VARIANT
I_SAVE = 'A'
I_DEFAULT = 'X'
IS_LAYOUT = GS_LAYOUT
* IS_PRINT =
* IT_SPECIAL_GROUPS =
* IT_TOOLBAR_EXCLUDING =
* IT_HYPERLINK =
* IT_ALV_GRAPHICS =
* IT_EXCEPT_QINFO =
* IR_SALV_ADAPTER =
CHANGING
IT_OUTTAB = GT_ITAB[]
IT_FIELDCATALOG = GT_FCAT[]
* IT_SORT =
* IT_FILTER =
* EXCEPTIONS
* INVALID_PARAMETER_COMBINATION = 1
* PROGRAM_ERROR = 2
* TOO_MANY_LINES = 3
* others = 4
.
IF SY-SUBRC <> 0.
* Implement suitable error handling here
ENDIF.
ENDMODULE.
*&---------------------------------------------------------------------*
*& Module USER_COMMAND_0100 INPUT
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
"PAI

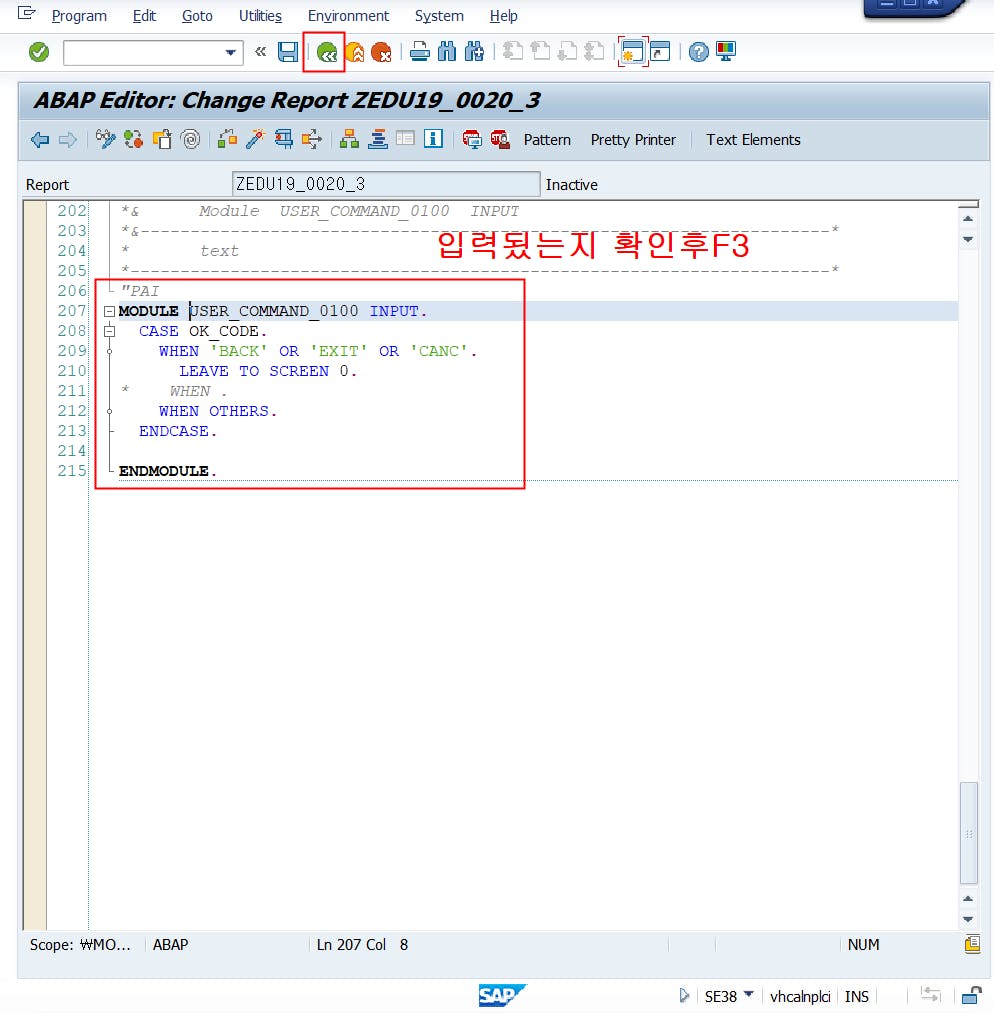

MODULE USER_COMMAND_0100 INPUT.
CASE OK_CODE.

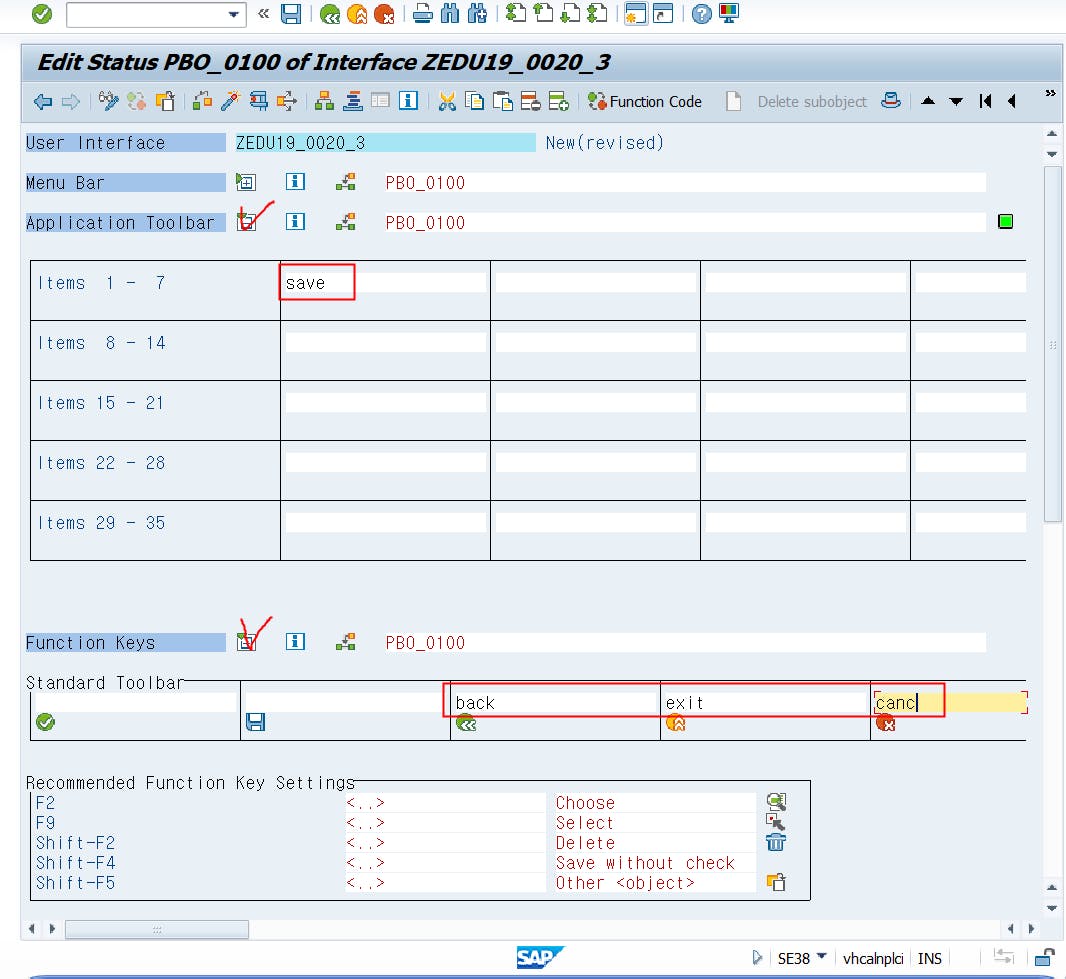

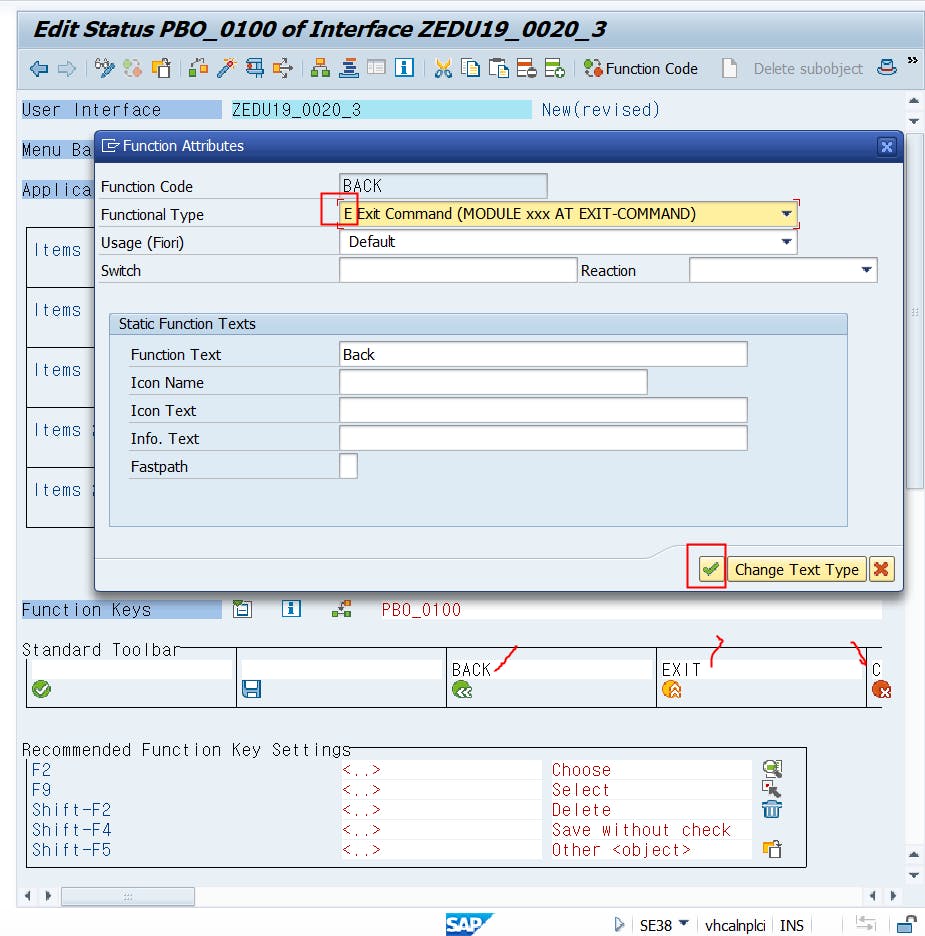

WHEN 'BACK' OR 'EXIT' OR 'CANC'.
LEAVE TO SCREEN 0.
* WHEN .
WHEN OTHERS.
ENDCASE.
ENDMODULE.

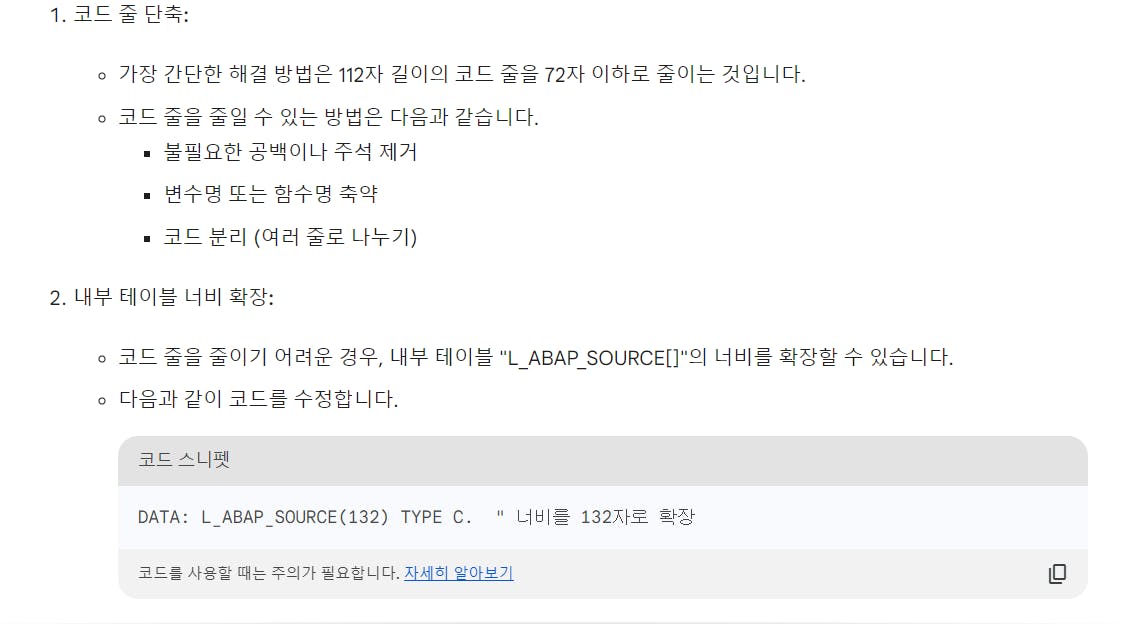

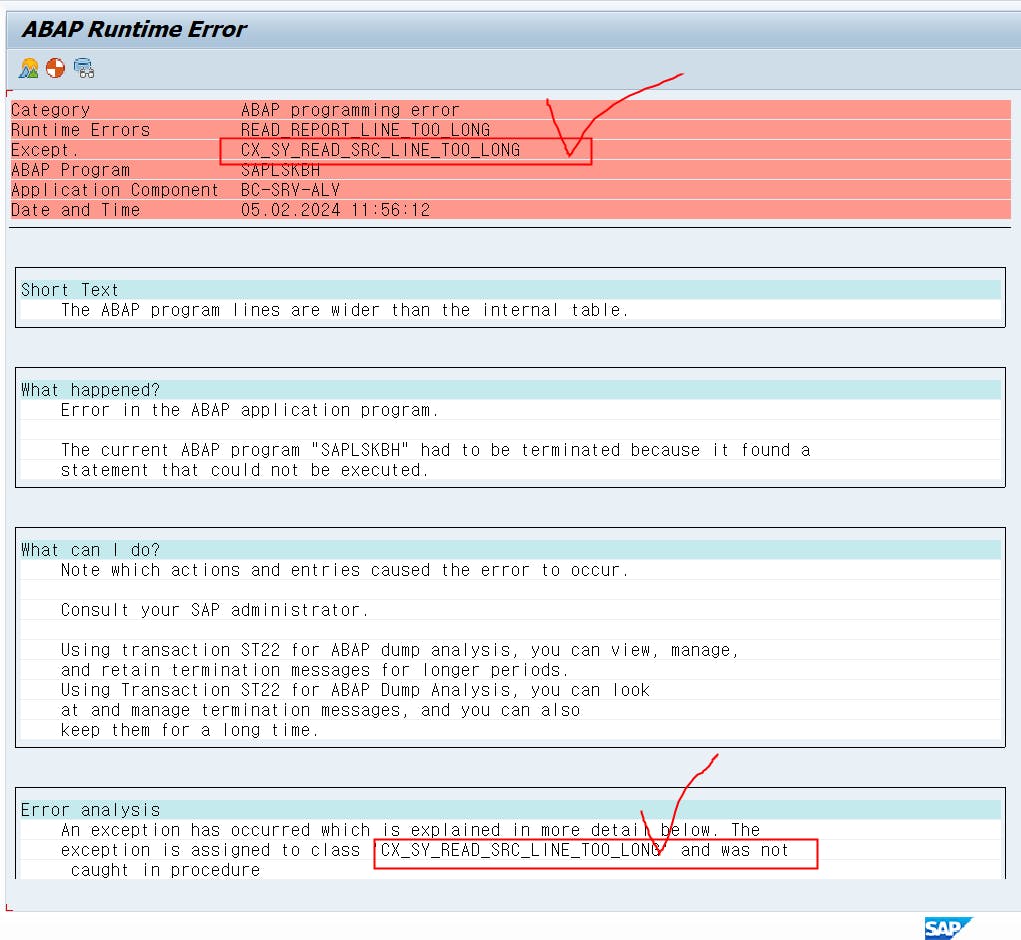

cx_sy_read_src_line_too_long sap abap 에러메세지

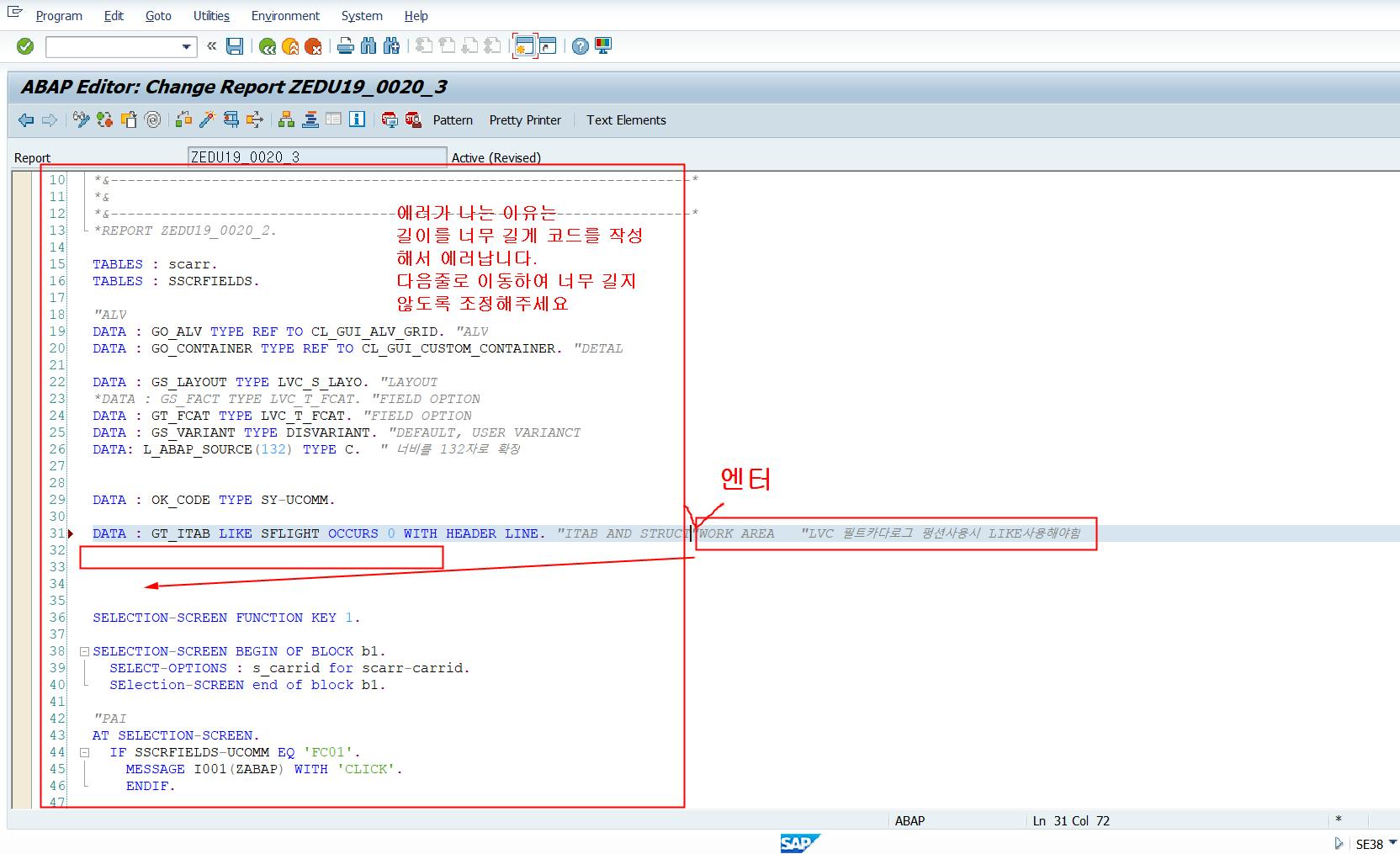

혹시나 에러가 날수있습니다. 에러가 나면 아래 내 용대로 조치하시면 됩니다.
에러 내용은 챗지피티에 물어보았습니다. 그래서 오류를 해결하였습니다.
이상입니다.
